Windowless Bathroom Remodel Ideas: Ventilation, Lighting & Finishes
A windowless bathroom can look completely transformed and still fail within a few years if the moisture problem wasn't solved before the first tile went up. New tile, layered lighting, fresh finishes all of it has an expiration date if the ventilation and substrate work were skipped. That's the gap this guide addresses.
This is a planning guide for homeowners doing the work themselves or directing contractors. Work through decisions in this order: assess existing conditions, lock in rough-in decisions for ventilation and electrical, waterproof the substrate, then choose finishes that reinforce the lighting and hold up to moisture.
Assess existing conditions before buying anything
Spend an hour with the room before scheduling trades or ordering materials. The answers to a few quick questions change what needs to happen in every phase that follows.

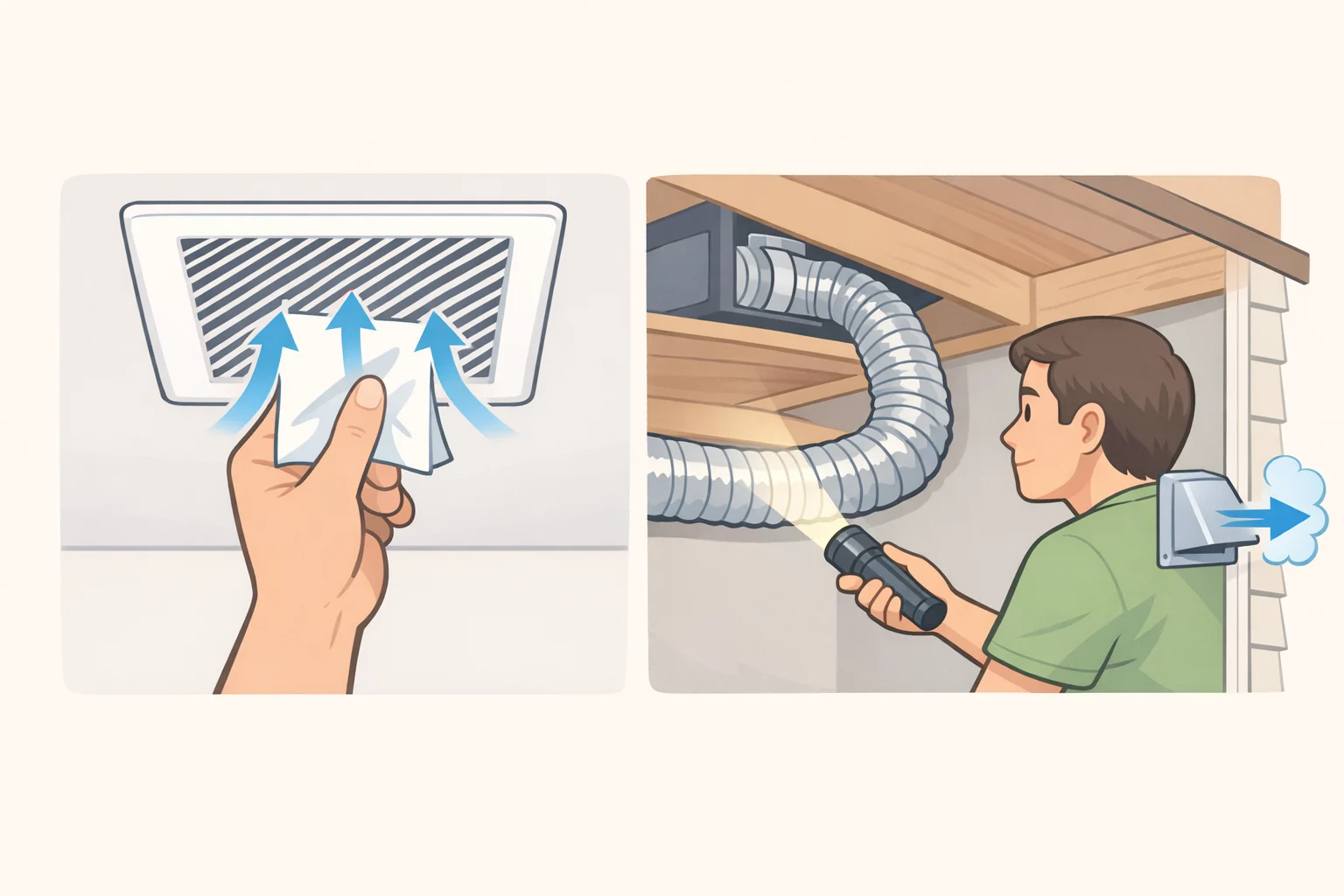

Does the existing fan move air? Hold a tissue near the grille while it runs. Barely any deflection means the fan is undersized, the duct is kinked or disconnected, or it's dumping into the ceiling cavity rather than outside.
Where does the duct terminate? Follow it from above or through an access panel. It must exit at an exterior wall cap or roof cap with a backdraft damper. Anything else is a code violation under IRC 2024, per Jaspector.
How high is the ceiling? Standard 8-foot ceilings allow a square-footage calculation for fan sizing. Anything taller needs a volume-based approach measure now.
What's under the existing tile? The Dwell renovator who documented a 4x8-foot gut renovation discovered mid-project that original tile had been mortar-set directly into the walls, making removal complicated enough that a plumber spent two days cutting through a small patch just to access shutoffs. That detail ultimately validated tiling over rather than full demo in that specific situation, per Dwell. Know what you're dealing with before swinging any hammers.
Any signs of active moisture damage? Soft subfloor, stained framing, or visible mold need to be addressed before anything else. Tiling over a problem doesn't fix it.
Phase 1: Lock in rough-in decisions before buying anything
Ventilation and electrical rough-in must be resolved on paper before a single finish material is selected. These decisions affect where ducts and wires run get the sequence wrong and you'll be opening walls back up.
Bathroom exhaust fan requirements: what the code sets and how to size for your actual installation
Under IRC 2024 Section R303.3, any bathroom without an openable window must have a mechanical exhaust fan that terminates directly to the exterior. A fixed window or skylight alone doesn't satisfy the requirement, per Jaspector's IRC 2024 analysis.
The code sets two capacity thresholds based on how the fan is controlled: 50 CFM minimum for a fan on an intermittent switch (timer, occupancy sensor, or light switch), or 20 CFM minimum for a fan running continuously as part of a whole-house ventilation strategy. That distinction affects both fan selection and switch wiring.
The fan must carry an HVI (Home Ventilating Institute) certification label. Manufacturer self-reported CFM ratings without independent testing are not code-compliant. If the label isn't visible on the housing at inspection, the fan fails, per Jaspector.
Exhaust must terminate at a dedicated exterior wall or roof cap with a functioning backdraft damper. Routing into an attic, crawlspace, soffit, garage, or ceiling cavity is prohibited. Soffit termination is specifically barred because soffits are intake points for attic ventilation moisture dumped there causes nearly the same structural damage as moisture left in the bathroom, per Jaspector.
Fan sizing: For duct runs longer than 25 feet or layouts with more than two elbows, size up to 80–110 CFM to ensure 50 CFM actually arrives at the grille under installed conditions label ratings are measured in ideal lab conditions, not yours, per Jaspector. For ceilings above 8 feet, skip the square-footage rule of thumb entirely. Use the volume method: room cubic footage multiplied by 8 air changes per hour, divided by 60, gives the CFM target, per Montreal Plumbing's building science guide.
Controls: Building science research sets 20 minutes as the practical minimum for meaningful post-shower moisture removal, per Jaspector. A switched timer works if occupants will reliably run the fan that long. If that's unlikely, a humidistat-controlled fan runs until ambient humidity drops below the set threshold without depending on anyone remembering. California requires timer or humidistat controls in newly constructed homes; some Pacific Northwest jurisdictions mandate a minimum 20-minute post-occupancy run time enforced by a listed timer, per Jaspector.
Duct material: Smooth-wall rigid metal duct is the preferred choice lowest airflow resistance, doesn't trap moisture, doesn't deteriorate, per Jaspector. If flex duct is used, it must be fully extended and supported every 4 feet. Never run uninsulated flex duct through a cold attic; condensation will form inside it.

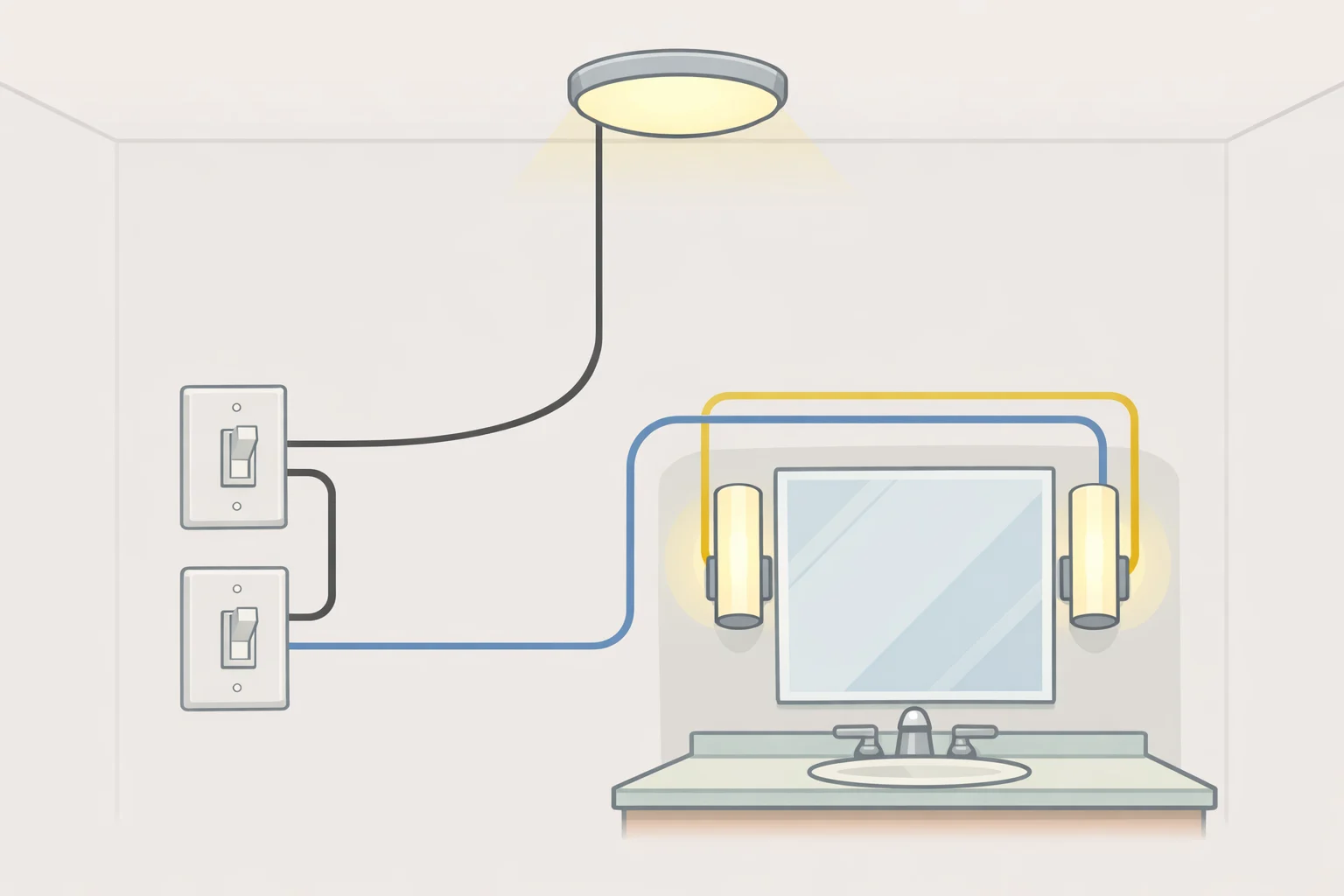

Electrical rough-in: decide lighting circuits now
Fixture locations and switch wiring are buried in the wall and ceiling. Changing them after finish work means reopening surfaces.
Plan separate controls for ambient overhead lighting and vanity task lighting. Running both through a single switch means they operate together, which eliminates the ability to dim one without the other. Dimmers on ambient and accent circuits let the bathroom function differently for a morning routine versus an evening bath, per Mr. Electric and Montreal Plumbing.
If shower niche or wet-zone accent lighting is part of the plan, that circuit must be roughed in before waterproofing begins. Fixtures inside shower enclosures require a minimum IP65 rating under the Quebec Building Code and electrical safety standards applicable to wet zones, per Montreal Plumbing. IP65 means fully dust-tight and protected against water jets from any direction. Verify the specific requirements for your local jurisdiction before selecting fixtures.
Rough-in checklist before closing walls:
- Fan housing connected to duct, not exhausting into ceiling cavity
- HVI label visible on fan housing
- Duct route confirmed to exterior wall or roof cap with a backdraft damper
- No soffit termination; cap location at least 3 feet from any building opening, per Jaspector
- Separate switch wiring confirmed for ambient and vanity circuits
- Wet-zone fixture locations confirmed with appropriate IP-rated housings specified
Phase 2: Waterproof the substrate before any finish surface goes up
A good exhaust fan manages airborne moisture. It does not manage liquid water that gets behind tile. Those are different problems with different solutions.
Why standard drywall isn't enough
A standard drywall-and-tile assembly is not a vapor barrier. Water vapor passes through it, and in a bathroom without natural airflow it migrates into wall structure over time, per Montreal Plumbing's waterproofing guide. The Dwell renovation held up well four years on because the substrate work was done right: the floor was re-leveled with self-leveling cement, walls were primed with adhesion primer, and wet zones were waterproofed with a liquid membrane (RedGard) before new tile went over old, per Dwell.
Where waterproofing fails most often

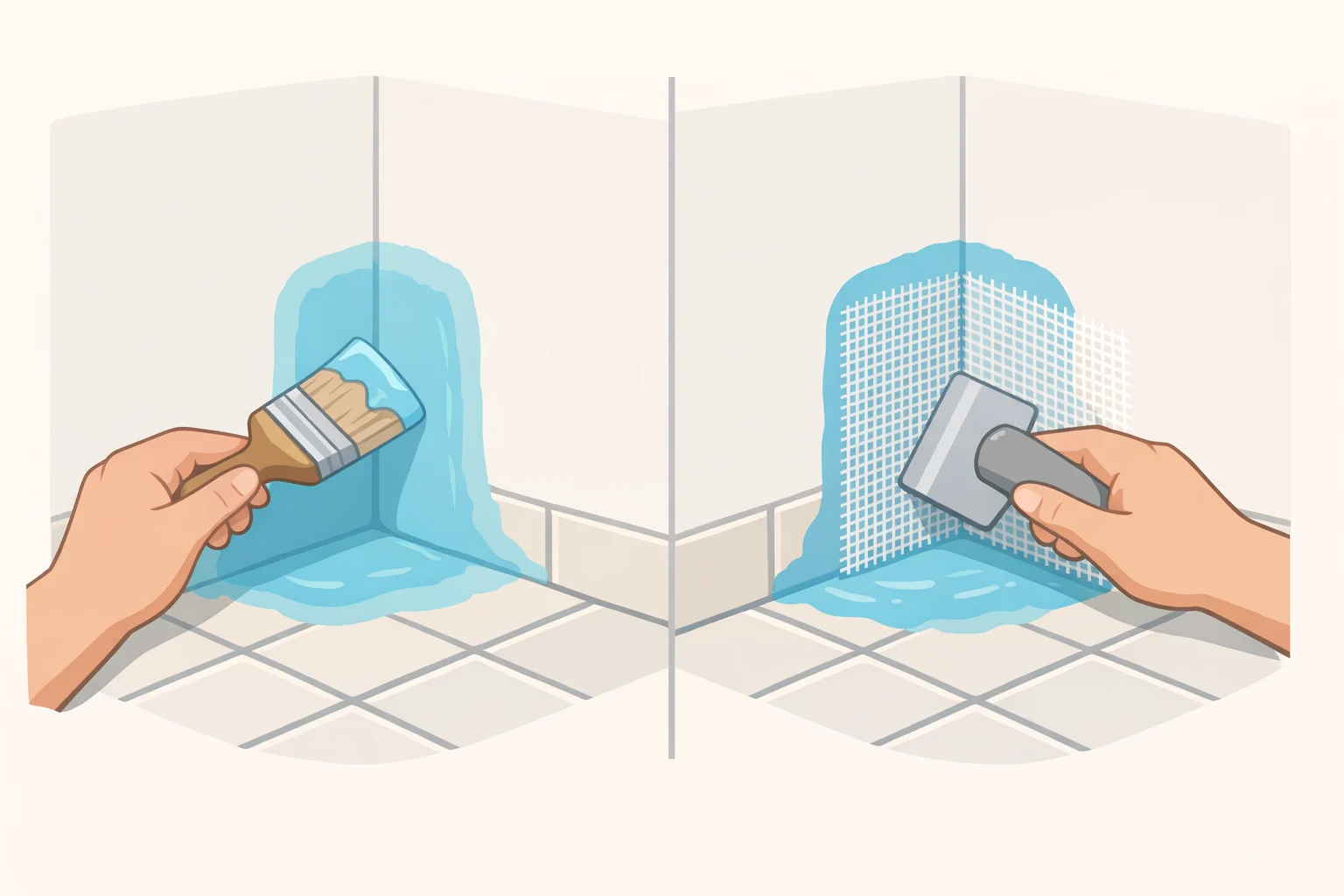

Corners and floor-to-wall transitions are the highest-failure zones. The professional standard is a three-course method: apply liquid membrane to the corner, embed fiberglass mesh fabric while still wet with no air bubbles, then apply a second coat of membrane over the fabric to fully saturate it. A single coat without reinforcement will crack at corners under normal expansion and contraction, per Montreal Plumbing.
The grouting mistake that's easy to make and hard to fix
The Dwell renovator's acknowledged failure was grout applied too shallow on thick marble mosaic tiles. Wiped too aggressively while still wet, it left recessed grout lines that became dirt traps nearly impossible to clean. The fix required stripping and re-grouting with stain-resistant quartz-reinforced grout and resealing, per Dwell. The same renovator sealed all marble before grouting, not after, so grout couldn't penetrate the stone during application.
Seal stone before grouting. Fill grout lines completely. Don't rush the wipe.
When to call someone
Rusted drains and corroded shutoff valves showed up mid-renovation in the Dwell project. The licensed plumber who came in spent two days cutting through mortar-set tile to access a small patch of wall which, as it turned out, demonstrated exactly why tiling over the rest of those walls rather than full demo was the right call in that situation, per Dwell. Know your jurisdiction's licensing requirements for plumbing and electrical work before deciding what to DIY.
Phase 3: Build a lighting plan that makes the space feel open
Lighting is the primary design tool for small windowless bathroom ideas. The square footage doesn't change. What changes is how many sources are present, where they're positioned, and what color they emit.

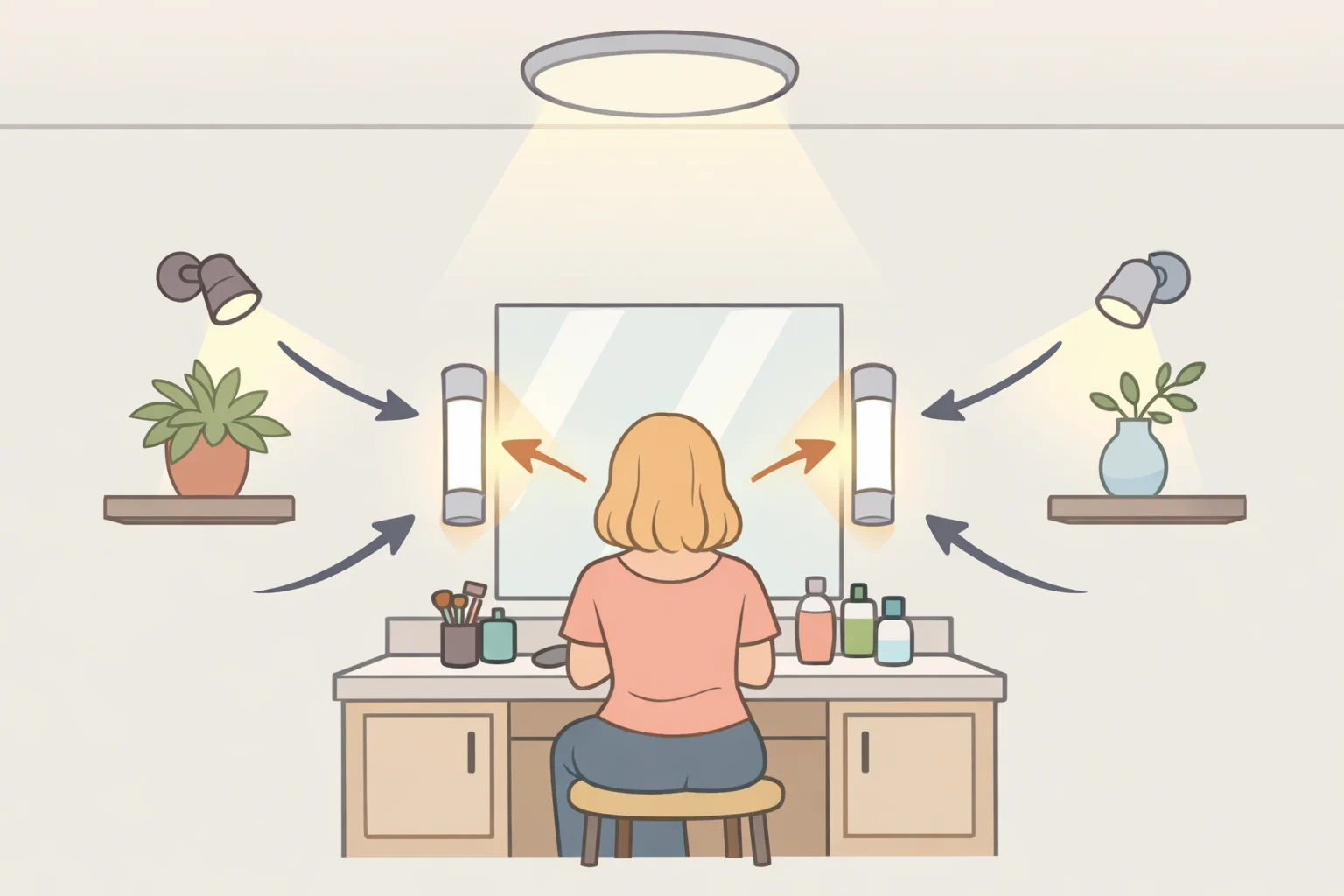

Layer the sources
A single overhead light creates persistent shadows that make the space feel smaller than it is. Target layered lighting: ambient overhead, task at the vanity, and optional accent, per Mr. Electric. Total brightness should reach at least 2,000 lumens a standard household bulb produces roughly 800 lumens, so a single multi-bulb overhead fixture is the floor, not the ceiling, per Mr. Electric.
Wall-washing with sconces or vertical light bars expands perceived volume more effectively than simply adding a brighter overhead. Alcon Lighting's commercial restroom design guide recommends sufficiently illuminating restroom walls to make a space feel spacious and comfortable guidance drawn from commercial standards, but the spatial principle translates directly.
Color temperature: where guidance diverges, and how to resolve it
Mr. Electric recommends 4000K–5000K LEDs for ambient light to mimic daylight. A designer perspective argues that 5000K reads as harsh and clinical, with 3000K warm white as the professional default, per Montreal Plumbing. Alcon Lighting lands at 3000–3500K as a neutral target, with 2700K for warmer residential or spa environments.
Use 3500–4000K for ambient overhead fixtures bright enough to prevent cave-like darkness without the blue-toned harshness of 5000K. Use 3000K high-CRI bulbs at the vanity, where flattering, accurate light matters more than raw brightness. One temperature doesn't need to serve every fixture.
One specification is consistent across all three sources: vanity and task lighting should use bulbs with a CRI of 90 or higher. Anything below that distorts skin tones and color accuracy at the mirror, per Mr. Electric and Montreal Plumbing. Alcon Lighting goes further, recommending 95+ CRI for residential and hospitality applications.
Fixture placement
Vertical light bars or sconces on either side of the mirror at face level eliminate the under-eye shadows a single downlight above the mirror creates downlighting above the mirror casts shadows downward, per Mr. Electric. Backlit mirrors and under-cabinet LED strips add an accent layer and bounce light onto adjacent walls. Dimmers give the bathroom different personalities across the day. Both are easiest to plan at rough-in, per Montreal Plumbing.
Phase 4: Choose finishes that reinforce the light and survive the moisture
Surface choices belong last, after rough-in and waterproofing are fixed. The right finishes amplify everything underneath. The wrong ones undermine a good lighting plan regardless of how well it was designed.
Reflectivity and tile scale
Glossy tile, polished stone, and large mirrors multiply the effect of layered lighting by reflecting it around the room. Matte or heavily textured surfaces absorb it, per Mr. Electric and Montreal Plumbing. Light-colored walls and ceilings extend the reach of every fixture.
The Dwell bathroom used cohesive material choices throughout: the same marble for floor mosaic and lower wall tile, zellige-look ceramic for the upper wall, pencil trim at every transition. A 4x8-foot footprint reads as intentional rather than cramped when the materials speak to each other, per Dwell. Large-format tiles reduce grout line density, which visually simplifies small surfaces.
Pedestal versus floating vanity
The Dwell project used a pedestal sink paired with an inset arched medicine cabinet, which handled storage without projecting into the room, per Dwell. If storage volume is the priority, a narrow floating vanity preserves floor sightlines while adding cabinet space. The deciding factor is daily storage need versus visual weight floor visibility reads as spaciousness, and in a room this size every visual decision registers.
Pre-construction checklist: what to do before purchasing materials
Work through this list before opening a tile catalog:
- Verify local code adoption. State and municipal codes sometimes exceed IRC minimums for fan capacity, noise ratings, or control requirements. Confirm what applies to your jurisdiction.
- Map the duct route. Identify the exterior termination point, measure the run length, count elbows, and select fan CFM based on actual installed conditions.
- Confirm fan type and controls. Timer if occupants will reliably run the fan post-shower; humidistat if they won't. Confirm HVI listing before purchasing.
- Sketch lighting circuits before pricing tile. Ambient, task, and accent fixture locations need to be set before waterproofing begins. Changing them afterward means reopening walls.
- Sequence finish purchases after rough-in is confirmed. Tile, fixtures, and vanity sizing should reflect the lighting plan and the actual available wall and floor area not precede those decisions.
Verify local code, sketch the duct run and lighting layout, lock in rough-in materials. That sequence is what the finished result depends on. Everything visible comes after.
